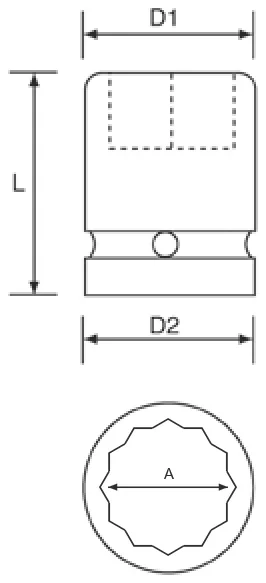

Mål og dimensjoner
Tolvkantpiper har flere viktige mål som beskriver passform og dimensjoner. Tegningen viser hvor de ulike målene er plassert.
- A
- = Nøkkelvidde (tolvkantstørrelse)
- D1
- = Ytre diameter ved pipehode
- D2
- = Ytre diameter ved feste
- L
- = Total lengde
Utførelser

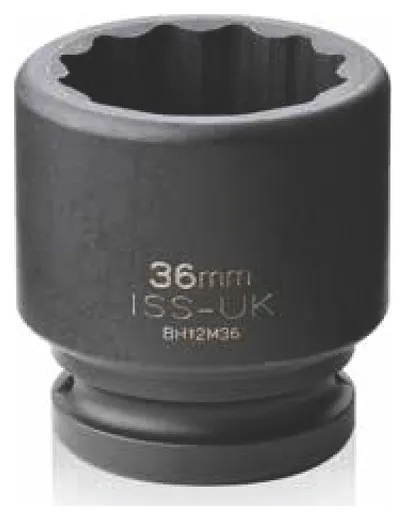

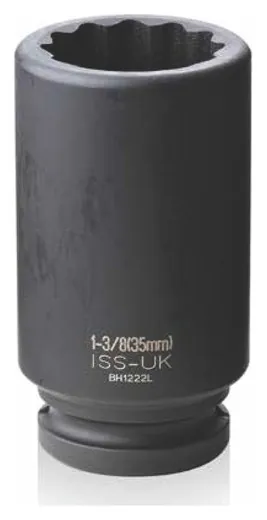

Tolvkantpiper leveres i to hovedutførelser, standard og lang. Enkelte størrelser finnes også som halvlang eller ekstra lang. Alle utførelser har høy kvalitet og presisjon.
3/8" tolvkantpipe
millimeter · 44 produkter
| Art.nr. | Beskrivelse | Utførelse | Str. A | D2 (mm) | D1 (mm) | L (mm) | Antall og handlekurv |
|---|---|---|---|---|---|---|---|
| IS-BH06M06 | 3/8" firkant 6 mm Std | Standard | 6 mm | 19 | 11 | 30 | |
| IS-BH06M06L | 3/8" firkant 6 mm Lang | Lang | 6 mm | 19 | 11 | 63 | |
| IS-BH06M07 | 3/8" firkant 7 mm Std | Standard | 7 mm | 19 | 12 | 30 | |
| IS-BH06M07L | 3/8" firkant 7 mm Lang | Lang | 7 mm | 19 | 12 | 63 | |
| IS-BH06M08 | 3/8" firkant 8 mm Std | Standard | 8 mm | 19 | 13 | 30 | |
| IS-BH06M08L | 3/8" firkant 8 mm Lang | Lang | 8 mm | 19 | 13 | 63 | |
| IS-BH06M09 | 3/8" firkant 9 mm Std | Standard | 9 mm | 19 | 15 | 30 | |
| IS-BH06M09L | 3/8" firkant 9 mm Lang | Lang | 9 mm | 19 | 15 | 65 | |
| IS-BH06M10 | 3/8" firkant 10 mm Std | Standard | 10 mm | 19 | 16,5 | 30 | |
| IS-BH06M10L | 3/8" firkant 10 mm Lang | Lang | 10 mm | 19 | 16,5 | 65 | |
| IS-BH06M11 | 3/8" firkant 11 mm Std | Standard | 11 mm | 19 | 17,5 | 30 | |
| IS-BH06M11L | 3/8" firkant 11 mm Lang | Lang | 11 mm | 19 | 17,5 | 65 | |
| IS-BH06M12 | 3/8" firkant 12 mm Std | Standard | 12 mm | 20 | 19 | 30 | |
| IS-BH06M12L | 3/8" firkant 12 mm Lang | Lang | 12 mm | 20 | 19 | 65 | |
| IS-BH06M13 | 3/8" firkant 13 mm Std | Standard | 13 mm | 22 | 20 | 30 | |
| IS-BH06M13L | 3/8" firkant 13 mm Lang | Lang | 13 mm | 22 | 20 | 65 | |
| IS-BH06M14 | 3/8" firkant 14 mm Std | Standard | 14 mm | 22 | 21,5 | 32 | |
| IS-BH06M14L | 3/8" firkant 14 mm Lang | Lang | 14 mm | 22 | 21,5 | 65 | |
| IS-BH06M15 | 3/8" firkant 15 mm Std | Standard | 15 mm | 22 | 22 | 32 | |
| IS-BH06M15L | 3/8" firkant 15 mm Lang | Lang | 15 mm | 22 | 22 | 65 | |
| IS-BH06M16 | 3/8" firkant 16 mm Std | Standard | 16 mm | 22 | 24 | 32 | |
| IS-BH06M16L | 3/8" firkant 16 mm Lang | Lang | 16 mm | 22 | 24 | 65 | |
| IS-BH06M17 | 3/8" firkant 17 mm Std | Standard | 17 mm | 22 | 25 | 32 | |
| IS-BH06M17L | 3/8" firkant 17 mm Lang | Lang | 17 mm | 22 | 25 | 65 | |
| IS-BH06M18 | 3/8" firkant 18 mm Std | Standard | 18 mm | 22 | 26 | 34 | |
| IS-BH06M18L | 3/8" firkant 18 mm Lang | Lang | 18 mm | 22 | 26 | 65 | |
| IS-BH06M19 | 3/8" firkant 19 mm Std | Standard | 19 mm | 22 | 27,5 | 34 | |
| IS-BH06M19L | 3/8" firkant 19 mm Lang | Lang | 19 mm | 22 | 27,5 | 65 | |
| IS-BH06M20 | 3/8" firkant 20 mm Std | Standard | 20 mm | 22 | 28 | 34 | |
| IS-BH06M20L | 3/8" firkant 20 mm Lang | Lang | 20 mm | 22 | 28 | 65 | |
| IS-BH06M21 | 3/8" firkant 21 mm Std | Standard | 21 mm | 22 | 30 | 34 | |
| IS-BH06M21L | 3/8" firkant 21 mm Lang | Lang | 21 mm | 22 | 30 | 65 | |
| IS-BH06M22 | 3/8" firkant 22 mm Std | Standard | 22 mm | 23 | 32 | 34 | |
| IS-BH06M22L | 3/8" firkant 22 mm Lang | Lang | 22 mm | 23 | 32 | 65 | |
| IS-BH06M23 | 3/8" firkant 23 mm Std | Standard | 23 mm | 23 | 33 | 34 | |
| IS-BH06M23L | 3/8" firkant 23 mm Lang | Lang | 23 mm | 23 | 33 | 65 | |
| IS-BH06M24 | 3/8" firkant 24 mm Std | Standard | 24 mm | 23 | 34 | 34 | |
| IS-BH06M24L | 3/8" firkant 24 mm Lang | Lang | 24 mm | 23 | 34 | 65 | |
| IS-BH06M25 | 3/8" firkant 25 mm Std | Standard | 25 mm | 23 | 35 | 36 | |
| IS-BH06M25L | 3/8" firkant 25 mm Lang | Lang | 25 mm | 23 | 35 | 65 | |
| IS-BH06M26 | 3/8" firkant 26 mm Std | Standard | 26 mm | 23 | 36 | 36 | |
| IS-BH06M26L | 3/8" firkant 26 mm Lang | Lang | 26 mm | 23 | 36 | 65 | |
| IS-BH06M27 | 3/8" firkant 27 mm Std | Standard | 27 mm | 23 | 38 | 36 | |
| IS-BH06M27L | 3/8" firkant 27 mm Lang | Lang | 27 mm | 23 | 38 | 65 |
3/8" tolvkantpipe
tommer · 28 produkter
| Art.nr. | Beskrivelse | Utførelse | Str. A | D2 (mm) | D1 (mm) | L (mm) | Antall og handlekurv |
|---|---|---|---|---|---|---|---|
| IS-BH0604 | 3/8" firkant 1/4" Std | Standard | 1/4" | 19 | 11 | 30 | |
| IS-BH0604L | 3/8" firkant 1/4" Lang | Lang | 1/4" | 19 | 11 | 63 | |
| IS-BH0605 | 3/8" firkant 5/16" Std | Standard | 5/16" | 19 | 13 | 30 | |
| IS-BH0605L | 3/8" firkant 5/16" Lang | Lang | 5/16" | 19 | 13 | 63 | |
| IS-BH0606 | 3/8" firkant 3/8" Std | Standard | 3/8" | 19 | 15 | 30 | |
| IS-BH0606L | 3/8" firkant 3/8" Lang | Lang | 3/8" | 19 | 15 | 65 | |
| IS-BH0607 | 3/8" firkant 7/16" Std | Standard | 7/16" | 19 | 17,5 | 30 | |
| IS-BH0607L | 3/8" firkant 7/16" Lang | Lang | 7/16" | 19 | 17,5 | 65 | |
| IS-BH0608 | 3/8" firkant 1/2" Std | Standard | 1/2" | 20 | 20 | 30 | |
| IS-BH0608L | 3/8" firkant 1/2" Lang | Lang | 1/2" | 20 | 20 | 65 | |
| IS-BH0609 | 3/8" firkant 9/16" Std | Standard | 9/16" | 22 | 21,5 | 32 | |
| IS-BH0609L | 3/8" firkant 9/16" Lang | Lang | 9/16" | 22 | 21,5 | 65 | |
| IS-BH0610 | 3/8" firkant 5/8" Std | Standard | 5/8" | 22 | 24 | 32 | |
| IS-BH0610L | 3/8" firkant 5/8" Lang | Lang | 5/8" | 22 | 24 | 65 | |
| IS-BH0611 | 3/8" firkant 11/16" Std | Standard | 11/16" | 22 | 25,5 | 32 | |
| IS-BH0611L | 3/8" firkant 11/16" Lang | Lang | 11/16" | 22 | 25,5 | 65 | |
| IS-BH0612 | 3/8" firkant 3/4" Std | Standard | 3/4" | 22 | 27,5 | 34 | |
| IS-BH0612L | 3/8" firkant 3/4" Lang | Lang | 3/4" | 22 | 27,5 | 65 | |
| IS-BH0613 | 3/8" firkant 13/16" Std | Standard | 13/16" | 22 | 30 | 34 | |
| IS-BH0613L | 3/8" firkant 13/16" Lang | Lang | 13/16" | 22 | 30 | 65 | |
| IS-BH0614 | 3/8" firkant 7/8" Std | Standard | 7/8" | 23 | 32 | 34 | |
| IS-BH0614L | 3/8" firkant 7/8" Lang | Lang | 7/8" | 23 | 32 | 65 | |
| IS-BH0615 | 3/8" firkant 15/16" Std | Standard | 15/16" | 23 | 34 | 34 | |
| IS-BH0615L | 3/8" firkant 15/16" Lang | Lang | 15/16" | 23 | 34 | 65 | |
| IS-BH0616 | 3/8" firkant 1" Std | Standard | 1" | 23 | 35,5 | 34 | |
| IS-BH0616L | 3/8" firkant 1" Lang | Lang | 1" | 23 | 35,5 | 65 | |
| IS-BH0617 | 3/8" firkant 1-1/16" Std | Standard | 1-1/16" | 23 | 38 | 34 | |
| IS-BH0617L | 3/8" firkant 1-1/16" Lang | Lang | 1-1/16" | 23 | 38 | 65 |
1/2" tolvkantpipe
millimeter · 60 produkter
| Art.nr. | Beskrivelse | Utførelse | Str. A | D2 (mm) | D1 (mm) | L (mm) | Antall og handlekurv |
|---|---|---|---|---|---|---|---|
| IS-BH08M08 | 1/2" firkant 8 mm Std | Standard | 8 mm | 25 | 15 | 38 | |
| IS-BH08M08L | 1/2" firkant 8 mm Lang | Lang | 8 mm | 25 | 15 | 83 | |
| IS-BH08M09 | 1/2" firkant 9 mm Std | Standard | 9 mm | 25 | 16 | 38 | |
| IS-BH08M09L | 1/2" firkant 9 mm Lang | Lang | 9 mm | 25 | 16 | 83 | |
| IS-BH08M10 | 1/2" firkant 10 mm Std | Standard | 10 mm | 25 | 17,5 | 38 | |
| IS-BH08M10L | 1/2" firkant 10 mm Lang | Lang | 10 mm | 25 | 17,5 | 83 | |
| IS-BH08M11 | 1/2" firkant 11 mm Std | Standard | 11 mm | 25 | 19 | 38 | |
| IS-BH08M11L | 1/2" firkant 11 mm Lang | Lang | 11 mm | 25 | 19 | 83 | |
| IS-BH08M12 | 1/2" firkant 12 mm Std | Standard | 12 mm | 25 | 20 | 38 | |
| IS-BH08M12L | 1/2" firkant 12 mm Lang | Lang | 12 mm | 25 | 20 | 83 | |
| IS-BH08M13 | 1/2" firkant 13 mm Std | Standard | 13 mm | 25 | 21 | 38 | |
| IS-BH08M13L | 1/2" firkant 13 mm Lang | Lang | 13 mm | 25 | 21 | 83 | |
| IS-BH08M14 | 1/2" firkant 14 mm Std | Standard | 14 mm | 25 | 22,5 | 38 | |
| IS-BH08M14L | 1/2" firkant 14 mm Lang | Lang | 14 mm | 25 | 22,5 | 83 | |
| IS-BH08M15 | 1/2" firkant 15 mm Std | Standard | 15 mm | 30 | 23,5 | 38 | |
| IS-BH08M15L | 1/2" firkant 15 mm Lang | Lang | 15 mm | 30 | 23,5 | 83 | |
| IS-BH08M16 | 1/2" firkant 16 mm Std | Standard | 16 mm | 30 | 25 | 38 | |
| IS-BH08M16L | 1/2" firkant 16 mm Lang | Lang | 16 mm | 30 | 25 | 83 | |
| IS-BH08M17 | 1/2" firkant 17 mm Std | Standard | 17 mm | 30 | 26,5 | 38 | |
| IS-BH08M17L | 1/2" firkant 17 mm Lang | Lang | 17 mm | 30 | 26,5 | 83 | |
| IS-BH08M18 | 1/2" firkant 18 mm Std | Standard | 18 mm | 30 | 27,5 | 40 | |
| IS-BH08M18L | 1/2" firkant 18 mm Lang | Lang | 18 mm | 30 | 27,5 | 83 | |
| IS-BH08M19 | 1/2" firkant 19 mm Std | Standard | 19 mm | 30 | 29 | 40 | |
| IS-BH08M19L | 1/2" firkant 19 mm Lang | Lang | 19 mm | 30 | 29 | 83 | |
| IS-BH08M20 | 1/2" firkant 20 mm Std | Standard | 20 mm | 30 | 30 | 40 | |
| IS-BH08M20L | 1/2" firkant 20 mm Lang | Lang | 20 mm | 30 | 30 | 83 | |
| IS-BH08M21 | 1/2" firkant 21 mm Std | Standard | 21 mm | 30 | 31 | 40 | |
| IS-BH08M21L | 1/2" firkant 21 mm Lang | Lang | 21 mm | 30 | 31 | 83 | |
| IS-BH08M22 | 1/2" firkant 22 mm Std | Standard | 22 mm | 30 | 32,5 | 40 | |
| IS-BH08M22L | 1/2" firkant 22 mm Lang | Lang | 22 mm | 30 | 32,5 | 90 | |
| IS-BH08M23 | 1/2" firkant 23 mm Std | Standard | 23 mm | 30 | 34 | 40 | |
| IS-BH08M23L | 1/2" firkant 23 mm Lang | Lang | 23 mm | 30 | 34 | 90 | |
| IS-BH08M24 | 1/2" firkant 24 mm Std | Standard | 24 mm | 30 | 35 | 45 | |
| IS-BH08M24L | 1/2" firkant 24 mm Lang | Lang | 24 mm | 30 | 35 | 90 | |
| IS-BH08M25 | 1/2" firkant 25 mm Std | Standard | 25 mm | 30 | 36 | 45 | |
| IS-BH08M25L | 1/2" firkant 25 mm Lang | Lang | 25 mm | 30 | 36 | 90 | |
| IS-BH08M26 | 1/2" firkant 26 mm Std | Standard | 26 mm | 30 | 38 | 50 | |
| IS-BH08M26L | 1/2" firkant 26 mm Lang | Lang | 26 mm | 30 | 38 | 90 | |
| IS-BH08M27 | 1/2" firkant 27 mm Std | Standard | 27 mm | 30 | 39 | 50 | |
| IS-BH08M27L | 1/2" firkant 27 mm Lang | Lang | 27 mm | 30 | 39 | 90 | |
| IS-BH08M28 | 1/2" firkant 28 mm Std | Standard | 28 mm | 30 | 40 | 50 | |
| IS-BH08M28L | 1/2" firkant 28 mm Lang | Lang | 28 mm | 30 | 40 | 90 | |
| IS-BH08M29 | 1/2" firkant 29 mm Std | Standard | 29 mm | 30 | 41 | 50 | |
| IS-BH08M29L | 1/2" firkant 29 mm Lang | Lang | 29 mm | 30 | 41 | 90 | |
| IS-BH08M30 | 1/2" firkant 30 mm Std | Standard | 30 mm | 30 | 42,5 | 50 | |
| IS-BH08M30L | 1/2" firkant 30 mm Lang | Lang | 30 mm | 30 | 42,5 | 90 | |
| IS-BH08M31 | 1/2" firkant 31 mm Std | Standard | 31 mm | 30 | 44 | 50 | |
| IS-BH08M31L | 1/2" firkant 31 mm Lang | Lang | 31 mm | 30 | 44 | 90 | |
| IS-BH08M32 | 1/2" firkant 32 mm Std | Standard | 32 mm | 30 | 45 | 50 | |
| IS-BH08M32L | 1/2" firkant 32 mm Lang | Lang | 32 mm | 30 | 45 | 90 | |
| IS-BH08M33 | 1/2" firkant 33 mm Std | Standard | 33 mm | 30 | 46,5 | 50 | |
| IS-BH08M33L | 1/2" firkant 33 mm Lang | Lang | 33 mm | 30 | 46,5 | 90 | |
| IS-BH08M34 | 1/2" firkant 34 mm Std | Standard | 34 mm | 30 | 48 | 50 | |
| IS-BH08M34L | 1/2" firkant 34 mm Lang | Lang | 34 mm | 30 | 48 | 90 | |
| IS-BH08M35 | 1/2" firkant 35 mm Std | Standard | 35 mm | 30 | 49,5 | 50 | |
| IS-BH08M35L | 1/2" firkant 35 mm Lang | Lang | 35 mm | 30 | 49,5 | 90 | |
| IS-BH08M36 | 1/2" firkant 36 mm Std | Standard | 36 mm | 30 | 50,5 | 50 | |
| IS-BH08M36L | 1/2" firkant 36 mm Lang | Lang | 36 mm | 30 | 50,5 | 90 | |
| IS-BH08M38 | 1/2" firkant 38 mm Std | Standard | 38 mm | 38 | 53 | 50 | |
| IS-BH08M38L | 1/2" firkant 38 mm Lang | Lang | 38 mm | 38 | 53 | 90 |
1/2" tolvkantpipe
tommer · 42 produkter
| Art.nr. | Beskrivelse | Utførelse | Str. A | D2 (mm) | D1 (mm) | L (mm) | Antall og handlekurv |
|---|---|---|---|---|---|---|---|
| IS-BH0804 | 1/2" firkant 1/4" Std | Standard | 1/4" | 25 | 13 | 38 | |
| IS-BH0804L | 1/2" firkant 1/4" Lang | Lang | 1/4" | 25 | 13 | 83 | |
| IS-BH0805 | 1/2" firkant 5/16" Std | Standard | 5/16" | 25 | 15 | 38 | |
| IS-BH0805L | 1/2" firkant 5/16" Lang | Lang | 5/16" | 25 | 15 | 83 | |
| IS-BH0806 | 1/2" firkant 3/8" Std | Standard | 3/8" | 25 | 17 | 38 | |
| IS-BH0806L | 1/2" firkant 3/8" Lang | Lang | 3/8" | 25 | 17 | 83 | |
| IS-BH0807 | 1/2" firkant 7/16" Std | Standard | 7/16" | 25 | 19 | 38 | |
| IS-BH0807L | 1/2" firkant 7/16" Lang | Lang | 7/16" | 25 | 19 | 83 | |
| IS-BH0808 | 1/2" firkant 1/2" Std | Standard | 1/2" | 25 | 21 | 38 | |
| IS-BH0808L | 1/2" firkant 1/2" Lang | Lang | 1/2" | 25 | 21 | 83 | |
| IS-BH0809 | 1/2" firkant 9/16" Std | Standard | 9/16" | 25 | 22,5 | 38 | |
| IS-BH0809L | 1/2" firkant 9/16" Lang | Lang | 9/16" | 25 | 22,5 | 83 | |
| IS-BH0810 | 1/2" firkant 5/8" Std | Standard | 5/8" | 28 | 25 | 38 | |
| IS-BH0810L | 1/2" firkant 5/8" Lang | Lang | 5/8" | 28 | 25 | 83 | |
| IS-BH0811 | 1/2" firkant 11/16" Std | Standard | 11/16" | 30 | 27 | 38 | |
| IS-BH0811L | 1/2" firkant 11/16" Lang | Lang | 11/16" | 30 | 27 | 83 | |
| IS-BH0812 | 1/2" firkant 3/4" Std | Standard | 3/4" | 30 | 29 | 40 | |
| IS-BH0812L | 1/2" firkant 3/4" Lang | Lang | 3/4" | 30 | 29 | 83 | |
| IS-BH0813 | 1/2" firkant 13/16" Std | Standard | 13/16" | 30 | 31 | 40 | |
| IS-BH0813L | 1/2" firkant 13/16" Lang | Lang | 13/16" | 30 | 31 | 83 | |
| IS-BH0814 | 1/2" firkant 7/8" Std | Standard | 7/8" | 30 | 32,5 | 40 | |
| IS-BH0814L | 1/2" firkant 7/8" Lang | Lang | 7/8" | 30 | 32,5 | 90 | |
| IS-BH0815 | 1/2" firkant 15/16" Std | Standard | 15/16" | 30 | 35 | 45 | |
| IS-BH0815L | 1/2" firkant 15/16" Lang | Lang | 15/16" | 30 | 35 | 90 | |
| IS-BH0816 | 1/2" firkant 1" Std | Standard | 1" | 30 | 37 | 45 | |
| IS-BH0816L | 1/2" firkant 1" Lang | Lang | 1" | 30 | 37 | 90 | |
| IS-BH0817 | 1/2" firkant 1-1/16" Std | Standard | 1-1/16" | 30 | 39 | 50 | |
| IS-BH0817L | 1/2" firkant 1-1/16" Lang | Lang | 1-1/16" | 30 | 39 | 90 | |
| IS-BH0818 | 1/2" firkant 1-1/8" Std | Standard | 1-1/8" | 30 | 41 | 50 | |
| IS-BH0818L | 1/2" firkant 1-1/8" Lang | Lang | 1-1/8" | 30 | 41 | 90 | |
| IS-BH0819 | 1/2" firkant 1-3/16" Std | Standard | 1-3/16" | 30 | 42,5 | 50 | |
| IS-BH0819L | 1/2" firkant 1-3/16" Lang | Lang | 1-3/16" | 30 | 42,5 | 90 | |
| IS-BH0820 | 1/2" firkant 1-1/4" Std | Standard | 1-1/4" | 30 | 45 | 50 | |
| IS-BH0820L | 1/2" firkant 1-1/4" Lang | Lang | 1-1/4" | 30 | 45 | 90 | |
| IS-BH0821 | 1/2" firkant 1-5/16" Std | Standard | 1-5/16" | 30 | 46,5 | 50 | |
| IS-BH0821L | 1/2" firkant 1-5/16" Lang | Lang | 1-5/16" | 30 | 46,5 | 90 | |
| IS-BH0822 | 1/2" firkant 1-3/8" Std | Standard | 1-3/8" | 30 | 49,5 | 50 | |
| IS-BH0822L | 1/2" firkant 1-3/8" Lang | Lang | 1-3/8" | 30 | 49,5 | 90 | |
| IS-BH0823 | 1/2" firkant 1-7/16" Std | Standard | 1-7/16" | 30 | 51 | 50 | |
| IS-BH0823L | 1/2" firkant 1-7/16" Lang | Lang | 1-7/16" | 30 | 51 | 90 | |
| IS-BH0824 | 1/2" firkant 1-1/2" Std | Standard | 1-1/2" | 38 | 53 | 50 | |
| IS-BH0824L | 1/2" firkant 1-1/2" Lang | Lang | 1-1/2" | 38 | 53 | 90 |
3/4" tolvkantpipe
millimeter · 76 produkter
| Art.nr. | Beskrivelse | Utførelse | Str. A | D2 (mm) | D1 (mm) | L (mm) | Antall og handlekurv |
|---|---|---|---|---|---|---|---|
| IS-BH12M13 | 3/4" firkant 13 mm Std | Standard | 13 mm | 44 | 24,5 | 50 | |
| IS-BH12M13L | 3/4" firkant 13 mm Lang | Lang | 13 mm | 44 | 24,5 | 95 | |
| IS-BH12M14 | 3/4" firkant 14 mm Std | Standard | 14 mm | 44 | 25,5 | 50 | |
| IS-BH12M14L | 3/4" firkant 14 mm Lang | Lang | 14 mm | 44 | 25,5 | 95 | |
| IS-BH12M15 | 3/4" firkant 15 mm Std | Standard | 15 mm | 44 | 27 | 50 | |
| IS-BH12M15L | 3/4" firkant 15 mm Lang | Lang | 15 mm | 44 | 27 | 95 | |
| IS-BH12M16 | 3/4" firkant 16 mm Std | Standard | 16 mm | 44 | 28 | 50 | |
| IS-BH12M16L | 3/4" firkant 16 mm Lang | Lang | 16 mm | 44 | 28 | 95 | |
| IS-BH12M17 | 3/4" firkant 17 mm Std | Standard | 17 mm | 44 | 31 | 50 | |
| IS-BH12M17L | 3/4" firkant 17 mm Lang | Lang | 17 mm | 44 | 31 | 95 | |
| IS-BH12M18 | 3/4" firkant 18 mm Std | Standard | 18 mm | 44 | 32 | 50 | |
| IS-BH12M18L | 3/4" firkant 18 mm Lang | Lang | 18 mm | 44 | 32 | 95 | |
| IS-BH12M19 | 3/4" firkant 19 mm Std | Standard | 19 mm | 44 | 33 | 50 | |
| IS-BH12M19L | 3/4" firkant 19 mm Lang | Lang | 19 mm | 44 | 33 | 95 | |
| IS-BH12M20 | 3/4" firkant 20 mm Std | Standard | 20 mm | 44 | 34 | 50 | |
| IS-BH12M20L | 3/4" firkant 20 mm Lang | Lang | 20 mm | 44 | 34 | 95 | |
| IS-BH12M21 | 3/4" firkant 21 mm Std | Standard | 21 mm | 44 | 35 | 50 | |
| IS-BH12M21L | 3/4" firkant 21 mm Lang | Lang | 21 mm | 44 | 35 | 95 | |
| IS-BH12M22 | 3/4" firkant 22 mm Std | Standard | 22 mm | 44 | 37 | 50 | |
| IS-BH12M22L | 3/4" firkant 22 mm Lang | Lang | 22 mm | 44 | 37 | 95 | |
| IS-BH12M23 | 3/4" firkant 23 mm Std | Standard | 23 mm | 44 | 38 | 50 | |
| IS-BH12M23L | 3/4" firkant 23 mm Lang | Lang | 23 mm | 44 | 38 | 95 | |
| IS-BH12M24 | 3/4" firkant 24 mm Std | Standard | 24 mm | 44 | 39 | 50 | |
| IS-BH12M24L | 3/4" firkant 24 mm Lang | Lang | 24 mm | 44 | 39 | 95 | |
| IS-BH12M25 | 3/4" firkant 25 mm Std | Standard | 25 mm | 44 | 41 | 50 | |
| IS-BH12M25L | 3/4" firkant 25 mm Lang | Lang | 25 mm | 44 | 41 | 95 | |
| IS-BH12M26 | 3/4" firkant 26 mm Std | Standard | 26 mm | 44 | 42 | 50 | |
| IS-BH12M26L | 3/4" firkant 26 mm Lang | Lang | 26 mm | 44 | 42 | 95 | |
| IS-BH12M27 | 3/4" firkant 27 mm Std | Standard | 27 mm | 44 | 43 | 54 | |
| IS-BH12M27L | 3/4" firkant 27 mm Lang | Lang | 27 mm | 44 | 43 | 95 | |
| IS-BH12M28 | 3/4" firkant 28 mm Std | Standard | 28 mm | 44 | 44 | 54 | |
| IS-BH12M28L | 3/4" firkant 28 mm Lang | Lang | 28 mm | 44 | 44 | 95 | |
| IS-BH12M29 | 3/4" firkant 29 mm Std | Standard | 29 mm | 44 | 45 | 54 | |
| IS-BH12M29L | 3/4" firkant 29 mm Lang | Lang | 29 mm | 44 | 45 | 95 | |
| IS-BH12M30 | 3/4" firkant 30 mm Std | Standard | 30 mm | 44 | 47 | 54 | |
| IS-BH12M30L | 3/4" firkant 30 mm Lang | Lang | 30 mm | 44 | 47 | 95 | |
| IS-BH12M31 | 3/4" firkant 31 mm Std | Standard | 31 mm | 44 | 48 | 56 | |
| IS-BH12M31L | 3/4" firkant 31 mm Lang | Lang | 31 mm | 44 | 48 | 95 | |
| IS-BH12M32 | 3/4" firkant 32 mm Std | Standard | 32 mm | 44 | 49 | 56 | |
| IS-BH12M32L | 3/4" firkant 32 mm Lang | Lang | 32 mm | 44 | 49 | 95 | |
| IS-BH12M33 | 3/4" firkant 33 mm Std | Standard | 33 mm | 44 | 51 | 56 | |
| IS-BH12M33L | 3/4" firkant 33 mm Lang | Lang | 33 mm | 44 | 51 | 95 | |
| IS-BH12M34 | 3/4" firkant 34 mm Std | Standard | 34 mm | 44 | 52 | 56 | |
| IS-BH12M34L | 3/4" firkant 34 mm Lang | Lang | 34 mm | 44 | 52 | 95 | |
| IS-BH12M35 | 3/4" firkant 35 mm Std | Standard | 35 mm | 44 | 53 | 56 | |
| IS-BH12M35L | 3/4" firkant 35 mm Lang | Lang | 35 mm | 44 | 53 | 95 | |
| IS-BH12M36 | 3/4" firkant 36 mm Std | Standard | 36 mm | 44 | 54 | 56 | |
| IS-BH12M36L | 3/4" firkant 36 mm Lang | Lang | 36 mm | 44 | 54 | 95 | |
| IS-BH12M37 | 3/4" firkant 37 mm Std | Standard | 37 mm | 44 | 56 | 58 | |
| IS-BH12M37L | 3/4" firkant 37 mm Lang | Lang | 37 mm | 44 | 56 | 95 | |
| IS-BH12M38 | 3/4" firkant 38 mm Std | Standard | 38 mm | 44 | 57 | 58 | |
| IS-BH12M38L | 3/4" firkant 38 mm Lang | Lang | 38 mm | 44 | 57 | 95 | |
| IS-BH12M39 | 3/4" firkant 39 mm Std | Standard | 39 mm | 44 | 58 | 58 | |
| IS-BH12M39L | 3/4" firkant 39 mm Lang | Lang | 39 mm | 44 | 58 | 95 | |
| IS-BH12M40 | 3/4" firkant 40 mm Std | Standard | 40 mm | 44 | 59 | 58 | |
| IS-BH12M40L | 3/4" firkant 40 mm Lang | Lang | 40 mm | 44 | 59 | 95 | |
| IS-BH12M41 | 3/4" firkant 41 mm Std | Standard | 41 mm | 44 | 60 | 58 | |
| IS-BH12M41L | 3/4" firkant 41 mm Lang | Lang | 41 mm | 44 | 60 | 95 | |
| IS-BH12M43 | 3/4" firkant 43 mm Std | Standard | 43 mm | 44 | 63,5 | 63 | |
| IS-BH12M43L | 3/4" firkant 43 mm Lang | Lang | 43 mm | 44 | 63,5 | 95 | |
| IS-BH12M46 | 3/4" firkant 46 mm Std | Standard | 46 mm | 44 | 67 | 63 | |
| IS-BH12M46L | 3/4" firkant 46 mm Lang | Lang | 46 mm | 44 | 67 | 100 | |
| IS-BH12M50 | 3/4" firkant 50 mm Std | Standard | 50 mm | 54 | 71 | 72 | |
| IS-BH12M50L | 3/4" firkant 50 mm Lang | Lang | 50 mm | 54 | 71 | 100 | |
| IS-BH12M55 | 3/4" firkant 55 mm Std | Standard | 55 mm | 54 | 78 | 74 | |
| IS-BH12M55L | 3/4" firkant 55 mm Lang | Lang | 55 mm | 54 | 78 | 105 | |
| IS-BH12M56 | 3/4" firkant 56 mm Std | Standard | 56 mm | 54 | 79 | 74 | |
| IS-BH12M56L | 3/4" firkant 56 mm Lang | Lang | 56 mm | 54 | 79 | 105 | |
| IS-BH12M60 | 3/4" firkant 60 mm Std | Standard | 60 mm | 54 | 84 | 75 | |
| IS-BH12M60L | 3/4" firkant 60 mm Lang | Lang | 60 mm | 54 | 84 | 105 | |
| IS-BH12M65 | 3/4" firkant 65 mm Std | Standard | 65 mm | 54 | 90 | 78 | |
| IS-BH12M65L | 3/4" firkant 65 mm Lang | Lang | 65 mm | 54 | 90 | 105 | |
| IS-BH12M70 | 3/4" firkant 70 mm Std | Standard | 70 mm | 54 | 96 | 80 | |
| IS-BH12M70L | 3/4" firkant 70 mm Lang | Lang | 70 mm | 54 | 96 | 105 | |
| IS-BH12M75 | 3/4" firkant 75 mm Std | Standard | 75 mm | 64 | 102 | 83 | |
| IS-BH12M75L | 3/4" firkant 75 mm Lang | Lang | 75 mm | 64 | 102 | 108 |
3/4" tolvkantpipe
tommer · 68 produkter
| Art.nr. | Beskrivelse | Utførelse | Str. A | D2 (mm) | D1 (mm) | L (mm) | Antall og handlekurv |
|---|---|---|---|---|---|---|---|
| IS-BH1208 | 3/4" firkant 1/2" Std | Standard | 1/2" | 44 | 24,5 | 50 | |
| IS-BH1208L | 3/4" firkant 1/2" Lang | Lang | 1/2" | 44 | 24,5 | 95 | |
| IS-BH1209 | 3/4" firkant 9/16" Std | Standard | 9/16" | 44 | 25,5 | 50 | |
| IS-BH1209L | 3/4" firkant 9/16" Lang | Lang | 9/16" | 44 | 25,5 | 95 | |
| IS-BH1210 | 3/4" firkant 5/8" Std | Standard | 5/8" | 44 | 28 | 50 | |
| IS-BH1210L | 3/4" firkant 5/8" Lang | Lang | 5/8" | 44 | 28 | 95 | |
| IS-BH1211 | 3/4" firkant 11/16" Std | Standard | 11/16" | 44 | 31,5 | 50 | |
| IS-BH1211L | 3/4" firkant 11/16" Lang | Lang | 11/16" | 44 | 31,5 | 95 | |
| IS-BH1212 | 3/4" firkant 3/4" Std | Standard | 3/4" | 44 | 33 | 50 | |
| IS-BH1212L | 3/4" firkant 3/4" Lang | Lang | 3/4" | 44 | 33 | 95 | |
| IS-BH1213 | 3/4" firkant 13/16" Std | Standard | 13/16" | 44 | 35 | 50 | |
| IS-BH1213L | 3/4" firkant 13/16" Lang | Lang | 13/16" | 44 | 35 | 95 | |
| IS-BH1214 | 3/4" firkant 7/8" Std | Standard | 7/8" | 44 | 37 | 50 | |
| IS-BH1214L | 3/4" firkant 7/8" Lang | Lang | 7/8" | 44 | 37 | 95 | |
| IS-BH1215 | 3/4" firkant 15/16" Std | Standard | 15/16" | 44 | 39 | 50 | |
| IS-BH1215L | 3/4" firkant 15/16" Lang | Lang | 15/16" | 44 | 39 | 95 | |
| IS-BH1216 | 3/4" firkant 1" Std | Standard | 1" | 44 | 41 | 50 | |
| IS-BH1216L | 3/4" firkant 1" Lang | Lang | 1" | 44 | 41 | 95 | |
| IS-BH1217 | 3/4" firkant 1-1/16" Std | Standard | 1-1/16" | 44 | 43 | 54 | |
| IS-BH1217L | 3/4" firkant 1-1/16" Lang | Lang | 1-1/16" | 44 | 43 | 95 | |
| IS-BH1218 | 3/4" firkant 1-1/8" Std | Standard | 1-1/8" | 44 | 44,5 | 54 | |
| IS-BH1218L | 3/4" firkant 1-1/8" Lang | Lang | 1-1/8" | 44 | 44,5 | 95 | |
| IS-BH1219 | 3/4" firkant 1-3/16" Std | Standard | 1-3/16" | 44 | 47 | 54 | |
| IS-BH1219L | 3/4" firkant 1-3/16" Lang | Lang | 1-3/16" | 44 | 47 | 95 | |
| IS-BH1220 | 3/4" firkant 1-1/4" Std | Standard | 1-1/4" | 44 | 49 | 56 | |
| IS-BH1220L | 3/4" firkant 1-1/4" Lang | Lang | 1-1/4" | 44 | 49 | 95 | |
| IS-BH1221 | 3/4" firkant 1-5/16" Std | Standard | 1-5/16" | 44 | 51 | 56 | |
| IS-BH1221L | 3/4" firkant 1-5/16" Lang | Lang | 1-5/16" | 44 | 51 | 95 | |
| IS-BH1222 | 3/4" firkant 1-3/8" Std | Standard | 1-3/8" | 44 | 53 | 56 | |
| IS-BH1222L | 3/4" firkant 1-3/8" Lang | Lang | 1-3/8" | 44 | 53 | 95 | |
| IS-BH1223 | 3/4" firkant 1-7/16" Std | Standard | 1-7/16" | 44 | 55 | 56 | |
| IS-BH1223L | 3/4" firkant 1-7/16" Lang | Lang | 1-7/16" | 44 | 55 | 95 | |
| IS-BH1224 | 3/4" firkant 1-1/2" Std | Standard | 1-1/2" | 44 | 57 | 58 | |
| IS-BH1224L | 3/4" firkant 1-1/2" Lang | Lang | 1-1/2" | 44 | 57 | 95 | |
| IS-BH1225 | 3/4" firkant 1-9/16" Std | Standard | 1-9/16" | 44 | 59 | 58 | |
| IS-BH1225L | 3/4" firkant 1-9/16" Lang | Lang | 1-9/16" | 44 | 59 | 95 | |
| IS-BH1226 | 3/4" firkant 1-5/8" Std | Standard | 1-5/8" | 44 | 61 | 58 | |
| IS-BH1226L | 3/4" firkant 1-5/8" Lang | Lang | 1-5/8" | 44 | 61 | 95 | |
| IS-BH1227 | 3/4" firkant 1-11/16" Std | Standard | 1-11/16" | 44 | 63,5 | 63 | |
| IS-BH1227L | 3/4" firkant 1-11/16" Lang | Lang | 1-11/16" | 44 | 63,5 | 95 | |
| IS-BH1228 | 3/4" firkant 1-3/4" Std | Standard | 1-3/4" | 44 | 64,5 | 63 | |
| IS-BH1228L | 3/4" firkant 1-3/4" Lang | Lang | 1-3/4" | 44 | 64,5 | 95 | |
| IS-BH1229 | 3/4" firkant 1-13/16" Std | Standard | 1-13/16" | 44 | 67 | 63 | |
| IS-BH1229L | 3/4" firkant 1-13/16" Lang | Lang | 1-13/16" | 44 | 67 | 100 | |
| IS-BH1230 | 3/4" firkant 1-7/8" Std | Standard | 1-7/8" | 44 | 68 | 68 | |
| IS-BH1230L | 3/4" firkant 1-7/8" Lang | Lang | 1-7/8" | 44 | 68 | 100 | |
| IS-BH1231 | 3/4" firkant 1-15/16" Std | Standard | 1-15/16" | 44 | 70 | 70 | |
| IS-BH1231L | 3/4" firkant 1-15/16" Lang | Lang | 1-15/16" | 44 | 70 | 100 | |
| IS-BH1232 | 3/4" firkant 2" Std | Standard | 2" | 54 | 72 | 72 | |
| IS-BH1232L | 3/4" firkant 2" Lang | Lang | 2" | 54 | 72 | 100 | |
| IS-BH1233 | 3/4" firkant 2-1/16" Std | Standard | 2-1/16" | 54 | 74 | 72 | |
| IS-BH1233L | 3/4" firkant 2-1/16" Lang | Lang | 2-1/16" | 54 | 74 | 100 | |
| IS-BH1234 | 3/4" firkant 2-1/8" Std | Standard | 2-1/8" | 54 | 77 | 72 | |
| IS-BH1234L | 3/4" firkant 2-1/8" Lang | Lang | 2-1/8" | 54 | 77 | 100 | |
| IS-BH1235 | 3/4" firkant 2-3/16" Std | Standard | 2-3/16" | 54 | 78,5 | 74 | |
| IS-BH1235L | 3/4" firkant 2-3/16" Lang | Lang | 2-3/16" | 54 | 78,5 | 105 | |
| IS-BH1236 | 3/4" firkant 2-1/4" Std | Standard | 2-1/4" | 54 | 80 | 74 | |
| IS-BH1236L | 3/4" firkant 2-1/4" Lang | Lang | 2-1/4" | 54 | 80 | 105 | |
| IS-BH1237 | 3/4" firkant 2-5/16" Std | Standard | 2-5/16" | 54 | 82 | 75 | |
| IS-BH1237L | 3/4" firkant 2-5/16" Lang | Lang | 2-5/16" | 54 | 82 | 105 | |
| IS-BH1238 | 3/4" firkant 2-3/8" Std | Standard | 2-3/8" | 54 | 84 | 75 | |
| IS-BH1238L | 3/4" firkant 2-3/8" Lang | Lang | 2-3/8" | 54 | 84 | 105 | |
| IS-BH1239 | 3/4" firkant 2-7/16" Std | Standard | 2-7/16" | 54 | 86 | 75 | |
| IS-BH1239L | 3/4" firkant 2-7/16" Lang | Lang | 2-7/16" | 54 | 86 | 105 | |
| IS-BH1240 | 3/4" firkant 2-1/2" Std | Standard | 2-1/2" | 54 | 88 | 75 | |
| IS-BH1240L | 3/4" firkant 2-1/2" Lang | Lang | 2-1/2" | 54 | 88 | 105 | |
| IS-BH1241 | 3/4" firkant 2-9/16" Std | Standard | 2-9/16" | 54 | 90 | 78 | |
| IS-BH1241L | 3/4" firkant 2-9/16" Lang | Lang | 2-9/16" | 54 | 90 | 105 |
1" tolvkantpipe
millimeter · 55 produkter
| Art.nr. | Beskrivelse | Utførelse | Str. A | D2 (mm) | D1 (mm) | L (mm) | Antall og handlekurv |
|---|---|---|---|---|---|---|---|
| IS-BH16M19 | 1" firkant 19 mm Std | Standard | 19 mm | 54 | 36 | 60 | |
| IS-BH16M19L | 1" firkant 19 mm Lang | Lang | 19 mm | 54 | 36 | 100 | |
| IS-BH16M21 | 1" firkant 21 mm Std | Standard | 21 mm | 54 | 38 | 60 | |
| IS-BH16M21L | 1" firkant 21 mm Lang | Lang | 21 mm | 54 | 38 | 100 | |
| IS-BH16M22 | 1" firkant 22 mm Std | Standard | 22 mm | 54 | 40 | 60 | |
| IS-BH16M22L | 1" firkant 22 mm Lang | Lang | 22 mm | 54 | 40 | 100 | |
| IS-BH16M24 | 1" firkant 24 mm Std | Standard | 24 mm | 54 | 42 | 60 | |
| IS-BH16M24L | 1" firkant 24 mm Lang | Lang | 24 mm | 54 | 42 | 100 | |
| IS-BH16M27 | 1" firkant 27 mm Std | Standard | 27 mm | 54 | 46 | 60 | |
| IS-BH16M27L | 1" firkant 27 mm Lang | Lang | 27 mm | 54 | 46 | 100 | |
| IS-BH16M28 | 1" firkant 28 mm Std | Standard | 28 mm | 54 | 47 | 62 | |
| IS-BH16M28L | 1" firkant 28 mm Lang | Lang | 28 mm | 54 | 47 | 100 | |
| IS-BH16M30 | 1" firkant 30 mm Std | Standard | 30 mm | 54 | 50 | 62 | |
| IS-BH16M30L | 1" firkant 30 mm Lang | Lang | 30 mm | 54 | 50 | 100 | |
| IS-BH16M32 | 1" firkant 32 mm Std | Standard | 32 mm | 54 | 52 | 62 | |
| IS-BH16M32L | 1" firkant 32 mm Lang | Lang | 32 mm | 54 | 52 | 100 | |
| IS-BH16M33 | 1" firkant 33 mm Std | Standard | 33 mm | 54 | 53 | 62 | |
| IS-BH16M33L | 1" firkant 33 mm Lang | Lang | 33 mm | 54 | 53 | 100 | |
| IS-BH16M34 | 1" firkant 34 mm Std | Standard | 34 mm | 54 | 55 | 62 | |
| IS-BH16M35 | 1" firkant 35 mm Std | Standard | 35 mm | 54 | 56 | 65 | |
| IS-BH16M35L | 1" firkant 35 mm Lang | Lang | 35 mm | 54 | 56 | 100 | |
| IS-BH16M36 | 1" firkant 36 mm Std | Standard | 36 mm | 54 | 57 | 67 | |
| IS-BH16M36L | 1" firkant 36 mm Lang | Lang | 36 mm | 54 | 57 | 100 | |
| IS-BH16M38 | 1" firkant 38 mm Std | Standard | 38 mm | 54 | 60 | 67 | |
| IS-BH16M38L | 1" firkant 38 mm Lang | Lang | 38 mm | 54 | 60 | 100 | |
| IS-BH16M41 | 1" firkant 41 mm Std | Standard | 41 mm | 54 | 63 | 70 | |
| IS-BH16M41L | 1" firkant 41 mm Lang | Lang | 41 mm | 54 | 63 | 100 | |
| IS-BH16M46 | 1" firkant 46 mm Std | Standard | 46 mm | 58 | 70 | 76 | |
| IS-BH16M46L | 1" firkant 46 mm Lang | Lang | 46 mm | 58 | 70 | 100 | |
| IS-BH16M50 | 1" firkant 50 mm Std | Standard | 50 mm | 62 | 75 | 80 | |
| IS-BH16M50L | 1" firkant 50 mm Lang | Lang | 50 mm | 62 | 75 | 100 | |
| IS-BH16M55 | 1" firkant 55 mm Std | Standard | 55 mm | 62 | 81 | 84 | |
| IS-BH16M55L | 1" firkant 55 mm Lang | Lang | 55 mm | 62 | 81 | 100 | |
| IS-BH16M60 | 1" firkant 60 mm Std | Standard | 60 mm | 62 | 87 | 87 | |
| IS-BH16M60L | 1" firkant 60 mm Lang | Lang | 60 mm | 62 | 87 | 120 | |
| IS-BH16M65 | 1" firkant 65 mm Std | Standard | 65 mm | 62 | 93 | 90 | |
| IS-BH16M65L | 1" firkant 65 mm Lang | Lang | 65 mm | 62 | 93 | 125 | |
| IS-BH16M70 | 1" firkant 70 mm Std | Standard | 70 mm | 62 | 100 | 96 | |
| IS-BH16M70L | 1" firkant 70 mm Lang | Lang | 70 mm | 62 | 100 | 125 | |
| IS-BH16M75 | 1" firkant 75 mm Std | Standard | 75 mm | 86 | 106 | 98 | |
| IS-BH16M75L | 1" firkant 75 mm Lang | Lang | 75 mm | 86 | 106 | 135 | |
| IS-BH16M80 | 1" firkant 80 mm Std | Standard | 80 mm | 86 | 112 | 100 | |
| IS-BH16M80L | 1" firkant 80 mm Lang | Lang | 80 mm | 86 | 112 | 135 | |
| IS-BH16M85 | 1" firkant 85 mm Std | Standard | 85 mm | 86 | 118 | 105 | |
| IS-BH16M85L | 1" firkant 85 mm Lang | Lang | 85 mm | 86 | 118 | 140 | |
| IS-BH16M90 | 1" firkant 90 mm Std | Standard | 90 mm | 86 | 125 | 105 | |
| IS-BH16M90L | 1" firkant 90 mm Lang | Lang | 90 mm | 86 | 125 | 140 | |
| IS-BH16M95 | 1" firkant 95 mm Std | Standard | 95 mm | 86 | 131 | 115 | |
| IS-BH16M95L | 1" firkant 95 mm Lang | Lang | 95 mm | 86 | 131 | 140 | |
| IS-BH16M100 | 1" firkant 100 mm Std | Standard | 100 mm | 86 | 137 | 115 | |
| IS-BH16M100L | 1" firkant 100 mm Lang | Lang | 100 mm | 86 | 137 | 140 | |
| IS-BH16M105 | 1" firkant 105 mm Std | Standard | 105 mm | 95 | 143 | 115 | |
| IS-BH16M105L | 1" firkant 105 mm Lang | Lang | 105 mm | 95 | 143 | 155 | |
| IS-BH16M110 | 1" firkant 110 mm Std | Standard | 110 mm | 95 | 149 | 115 | |
| IS-BH16M115 | 1" firkant 115 mm Std | Standard | 115 mm | 95 | 155 | 115 |
1" tolvkantpipe
tommer · 90 produkter
| Art.nr. | Beskrivelse | Utførelse | Str. A | D2 (mm) | D1 (mm) | L (mm) | Antall og handlekurv |
|---|---|---|---|---|---|---|---|
| IS-BH1610 | 1" firkant 5/8" Std | Standard | 5/8" | 54 | 32 | 60 | |
| IS-BH1610L | 1" firkant 5/8" Lang | Lang | 5/8" | 54 | 32 | 100 | |
| IS-BH1611 | 1" firkant 11/16" Std | Standard | 11/16" | 54 | 34 | 60 | |
| IS-BH1611L | 1" firkant 11/16" Lang | Lang | 11/16" | 54 | 34 | 100 | |
| IS-BH1612 | 1" firkant 3/4" Std | Standard | 3/4" | 54 | 36 | 60 | |
| IS-BH1612L | 1" firkant 3/4" Lang | Lang | 3/4" | 54 | 36 | 100 | |
| IS-BH1613 | 1" firkant 13/16" Std | Standard | 13/16" | 54 | 38 | 60 | |
| IS-BH1613L | 1" firkant 13/16" Lang | Lang | 13/16" | 54 | 38 | 100 | |
| IS-BH1614 | 1" firkant 7/8" Std | Standard | 7/8" | 54 | 39 | 60 | |
| IS-BH1614L | 1" firkant 7/8" Lang | Lang | 7/8" | 54 | 39 | 100 | |
| IS-BH1615 | 1" firkant 15/16" Std | Standard | 15/16" | 54 | 42 | 60 | |
| IS-BH1615L | 1" firkant 15/16" Lang | Lang | 15/16" | 54 | 42 | 100 | |
| IS-BH1616 | 1" firkant 1" Std | Standard | 1" | 54 | 44 | 60 | |
| IS-BH1616L | 1" firkant 1" Lang | Lang | 1" | 54 | 44 | 100 | |
| IS-BH1617 | 1" firkant 1-1/16" Std | Standard | 1-1/16" | 54 | 46 | 60 | |
| IS-BH1617L | 1" firkant 1-1/16" Lang | Lang | 1-1/16" | 54 | 46 | 100 | |
| IS-BH1618 | 1" firkant 1-1/8" Std | Standard | 1-1/8" | 54 | 48 | 62 | |
| IS-BH1618L | 1" firkant 1-1/8" Lang | Lang | 1-1/8" | 54 | 48 | 100 | |
| IS-BH1619 | 1" firkant 1-3/16" Std | Standard | 1-3/16" | 54 | 50 | 62 | |
| IS-BH1619L | 1" firkant 1-3/16" Lang | Lang | 1-3/16" | 54 | 50 | 100 | |
| IS-BH1620 | 1" firkant 1-1/4" Std | Standard | 1-1/4" | 54 | 52 | 62 | |
| IS-BH1620L | 1" firkant 1-1/4" Lang | Lang | 1-1/4" | 54 | 52 | 100 | |
| IS-BH1621 | 1" firkant 1-5/16" Std | Standard | 1-5/16" | 54 | 54 | 62 | |
| IS-BH1621L | 1" firkant 1-5/16" Lang | Lang | 1-5/16" | 54 | 54 | 100 | |
| IS-BH1622 | 1" firkant 1-3/8" Std | Standard | 1-3/8" | 54 | 56 | 65 | |
| IS-BH1622L | 1" firkant 1-3/8" Lang | Lang | 1-3/8" | 54 | 56 | 100 | |
| IS-BH1623 | 1" firkant 1-7/16" Std | Standard | 1-7/16" | 54 | 58 | 67 | |
| IS-BH1623L | 1" firkant 1-7/16" Lang | Lang | 1-7/16" | 54 | 58 | 100 | |
| IS-BH1624 | 1" firkant 1-1/2" Std | Standard | 1-1/2" | 54 | 60 | 67 | |
| IS-BH1624L | 1" firkant 1-1/2" Lang | Lang | 1-1/2" | 54 | 60 | 100 | |
| IS-BH1625 | 1" firkant 1-9/16" Std | Standard | 1-9/16" | 54 | 62 | 70 | |
| IS-BH1625L | 1" firkant 1-9/16" Lang | Lang | 1-9/16" | 54 | 62 | 100 | |
| IS-BH1626 | 1" firkant 1-5/8" Std | Standard | 1-5/8" | 54 | 63,5 | 70 | |
| IS-BH1626L | 1" firkant 1-5/8" Lang | Lang | 1-5/8" | 54 | 63,5 | 100 | |
| IS-BH1627 | 1" firkant 1-11/16" Std | Standard | 1-11/16" | 54 | 66 | 74 | |
| IS-BH1627L | 1" firkant 1-11/16" Lang | Lang | 1-11/16" | 54 | 66 | 100 | |
| IS-BH1628 | 1" firkant 1-3/4" Std | Standard | 1-3/4" | 54 | 67,5 | 74 | |
| IS-BH1628L | 1" firkant 1-3/4" Lang | Lang | 1-3/4" | 54 | 67,5 | 100 | |
| IS-BH1629 | 1" firkant 1-13/16" Std | Standard | 1-13/16" | 58 | 70 | 76 | |
| IS-BH1629L | 1" firkant 1-13/16" Lang | Lang | 1-13/16" | 58 | 70 | 100 | |
| IS-BH1630 | 1" firkant 1-7/8" Std | Standard | 1-7/8" | 58 | 72 | 76 | |
| IS-BH1630L | 1" firkant 1-7/8" Lang | Lang | 1-7/8" | 58 | 72 | 100 | |
| IS-BH1631 | 1" firkant 1-15/16" Std | Standard | 1-15/16" | 58 | 74 | 80 | |
| IS-BH1631L | 1" firkant 1-15/16" Lang | Lang | 1-15/16" | 58 | 74 | 100 | |
| IS-BH1632 | 1" firkant 2" Std | Standard | 2" | 62 | 76 | 80 | |
| IS-BH1632L | 1" firkant 2" Lang | Lang | 2" | 62 | 76 | 100 | |
| IS-BH1633 | 1" firkant 2-1/16" Std | Standard | 2-1/16" | 62 | 77,5 | 84 | |
| IS-BH1633L | 1" firkant 2-1/16" Lang | Lang | 2-1/16" | 62 | 77,5 | 100 | |
| IS-BH1634 | 1" firkant 2-1/8" Std | Standard | 2-1/8" | 62 | 80 | 84 | |
| IS-BH1634L | 1" firkant 2-1/8" Lang | Lang | 2-1/8" | 62 | 80 | 100 | |
| IS-BH1635 | 1" firkant 2-3/16" Std | Standard | 2-3/16" | 62 | 81,5 | 84 | |
| IS-BH1635L | 1" firkant 2-3/16" Lang | Lang | 2-3/16" | 62 | 81,5 | 100 | |
| IS-BH1636 | 1" firkant 2-1/4" Std | Standard | 2-1/4" | 62 | 84 | 84 | |
| IS-BH1636L | 1" firkant 2-1/4" Lang | Lang | 2-1/4" | 62 | 84 | 105 | |
| IS-BH1637 | 1" firkant 2-5/16" Std | Standard | 2-5/16" | 62 | 86 | 87 | |
| IS-BH1637L | 1" firkant 2-5/16" Lang | Lang | 2-5/16" | 62 | 86 | 105 | |
| IS-BH1638 | 1" firkant 2-3/8" Std | Standard | 2-3/8" | 62 | 87 | 87 | |
| IS-BH1638L | 1" firkant 2-3/8" Lang | Lang | 2-3/8" | 62 | 87 | 120 | |
| IS-BH1639 | 1" firkant 2-7/16" Std | Standard | 2-7/16" | 62 | 89 | 87 | |
| IS-BH1639L | 1" firkant 2-7/16" Lang | Lang | 2-7/16" | 62 | 89 | 120 | |
| IS-BH1640 | 1" firkant 2-1/2" Std | Standard | 2-1/2" | 62 | 91 | 87 | |
| IS-BH1640L | 1" firkant 2-1/2" Lang | Lang | 2-1/2" | 62 | 91 | 120 | |
| IS-BH1641 | 1" firkant 2-9/16" Std | Standard | 2-9/16" | 62 | 93 | 90 | |
| IS-BH1641L | 1" firkant 2-9/16" Lang | Lang | 2-9/16" | 62 | 93 | 125 | |
| IS-BH1642 | 1" firkant 2-5/8" Std | Standard | 2-5/8" | 62 | 95 | 92 | |
| IS-BH1642L | 1" firkant 2-5/8" Lang | Lang | 2-5/8" | 62 | 95 | 125 | |
| IS-BH1643 | 1" firkant 2-11/16" Std | Standard | 2-11/16" | 62 | 97 | 92 | |
| IS-BH1643L | 1" firkant 2-11/16" Lang | Lang | 2-11/16" | 62 | 97 | 125 | |
| IS-BH1644 | 1" firkant 2-3/4" Std | Standard | 2-3/4" | 62 | 100 | 96 | |
| IS-BH1644L | 1" firkant 2-3/4" Lang | Lang | 2-3/4" | 62 | 100 | 125 | |
| IS-BH1645 | 1" firkant 2-13/16" Std | Standard | 2-13/16" | 62 | 102 | 96 | |
| IS-BH1645L | 1" firkant 2-13/16" Lang | Lang | 2-13/16" | 62 | 102 | 125 | |
| IS-BH1646 | 1" firkant 2-7/8" Std | Standard | 2-7/8" | 86 | 104 | 96 | |
| IS-BH1646L | 1" firkant 2-7/8" Lang | Lang | 2-7/8" | 86 | 104 | 125 | |
| IS-BH1647 | 1" firkant 2-15/16" Std | Standard | 2-15/16" | 86 | 105 | 98 | |
| IS-BH1647L | 1" firkant 2-15/16" Lang | Lang | 2-15/16" | 86 | 105 | 135 | |
| IS-BH1648 | 1" firkant 3" Std | Standard | 3" | 86 | 107 | 100 | |
| IS-BH1648L | 1" firkant 3" Lang | Lang | 3" | 86 | 107 | 135 | |
| IS-BH1650 | 1" firkant 3-1/8" Std | Standard | 3-1/8" | 86 | 111 | 100 | |
| IS-BH1650L | 1" firkant 3-1/8" Lang | Lang | 3-1/8" | 86 | 111 | 135 | |
| IS-BH1654 | 1" firkant 3-3/8" Std | Standard | 3-3/8" | 86 | 119 | 105 | |
| IS-BH1654L | 1" firkant 3-3/8" Lang | Lang | 3-3/8" | 86 | 119 | 140 | |
| IS-BH1656 | 1" firkant 3-1/2" Std | Standard | 3-1/2" | 86 | 124 | 105 | |
| IS-BH1656L | 1" firkant 3-1/2" Lang | Lang | 3-1/2" | 86 | 124 | 140 | |
| IS-BH1660 | 1" firkant 3-3/4" Std | Standard | 3-3/4" | 86 | 131 | 115 | |
| IS-BH1660L | 1" firkant 3-3/4" Lang | Lang | 3-3/4" | 86 | 131 | 140 | |
| IS-BH1662 | 1" firkant 3-7/8" Std | Standard | 3-7/8" | 86 | 135 | 115 | |
| IS-BH1662L | 1" firkant 3-7/8" Lang | Lang | 3-7/8" | 86 | 135 | 140 | |
| IS-BH1668 | 1" firkant 4-1/4" Std | Standard | 4-1/4" | 95 | 147 | 115 | |
| IS-BH1668L | 1" firkant 4-1/4" Lang | Lang | 4-1/4" | 95 | 147 | 155 |
1-1/2" tolvkantpipe
millimeter · 22 produkter
| Art.nr. | Beskrivelse | Utførelse | Str. A | D2 (mm) | D1 (mm) | L (mm) | Antall og handlekurv |
|---|---|---|---|---|---|---|---|
| IS-BH24M30 | 1-1/2" firkant 30 mm Std | Standard | 30 mm | 86 | 56 | 78 | |
| IS-BH24M32 | 1-1/2" firkant 32 mm Std | Standard | 32 mm | 86 | 58 | 78 | |
| IS-BH24M36 | 1-1/2" firkant 36 mm Std | Standard | 36 mm | 86 | 64 | 78 | |
| IS-BH24M38 | 1-1/2" firkant 38 mm Std | Standard | 38 mm | 86 | 66 | 80 | |
| IS-BH24M40 | 1-1/2" firkant 40 mm Std | Standard | 40 mm | 86 | 68 | 80 | |
| IS-BH24M41 | 1-1/2" firkant 41 mm Std | Standard | 41 mm | 86 | 70 | 80 | |
| IS-BH24M46 | 1-1/2" firkant 46 mm Std | Standard | 46 mm | 86 | 76 | 84 | |
| IS-BH24M50 | 1-1/2" firkant 50 mm Std | Standard | 50 mm | 86 | 81 | 87 | |
| IS-BH24M55 | 1-1/2" firkant 55 mm Std | Standard | 55 mm | 86 | 87 | 90 | |
| IS-BH24M60 | 1-1/2" firkant 60 mm Std | Standard | 60 mm | 86 | 94 | 95 | |
| IS-BH24M65 | 1-1/2" firkant 65 mm Std | Standard | 65 mm | 86 | 100 | 100 | |
| IS-BH24M70 | 1-1/2" firkant 70 mm Std | Standard | 70 mm | 86 | 106 | 105 | |
| IS-BH24M75 | 1-1/2" firkant 75 mm Std | Standard | 75 mm | 86 | 112 | 108 | |
| IS-BH24M80 | 1-1/2" firkant 80 mm Std | Standard | 80 mm | 86 | 119 | 115 | |
| IS-BH24M85 | 1-1/2" firkant 85 mm Std | Standard | 85 mm | 86 | 125 | 118 | |
| IS-BH24M90 | 1-1/2" firkant 90 mm Std | Standard | 90 mm | 86 | 131 | 123 | |
| IS-BH24M95 | 1-1/2" firkant 95 mm Std | Standard | 95 mm | 95 | 137 | 123 | |
| IS-BH24M100 | 1-1/2" firkant 100 mm Std | Standard | 100 mm | 95 | 144 | 130 | |
| IS-BH24M105 | 1-1/2" firkant 105 mm Std | Standard | 105 mm | 95 | 154 | 130 | |
| IS-BH24M110 | 1-1/2" firkant 110 mm Std | Standard | 110 mm | 95 | 157 | 135 | |
| IS-BH24M115 | 1-1/2" firkant 115 mm Std | Standard | 115 mm | 95 | 164 | 140 | |
| IS-BH24M120 | 1-1/2" firkant 120 mm Std | Standard | 120 mm | 95 | 167 | 140 |
1-1/2" tolvkantpipe
tommer · 37 produkter
| Art.nr. | Beskrivelse | Utførelse | Str. A | D2 (mm) | D1 (mm) | L (mm) | Antall og handlekurv |
|---|---|---|---|---|---|---|---|
| IS-BH2419 | 1-1/2" firkant 1-3/16" Std | Standard | 1-3/16" | 86 | 56 | 78 | |
| IS-BH2420 | 1-1/2" firkant 1-1/4" Std | Standard | 1-1/4" | 86 | 58 | 78 | |
| IS-BH2421 | 1-1/2" firkant 1-5/16" Std | Standard | 1-5/16" | 86 | 60 | 78 | |
| IS-BH2422 | 1-1/2" firkant 1-3/8" Std | Standard | 1-3/8" | 86 | 64 | 78 | |
| IS-BH2423 | 1-1/2" firkant 1-7/16" Std | Standard | 1-7/16" | 86 | 64 | 78 | |
| IS-BH2424 | 1-1/2" firkant 1-1/2" Std | Standard | 1-1/2" | 86 | 66 | 80 | |
| IS-BH2425 | 1-1/2" firkant 1-9/16" Std | Standard | 1-9/16" | 86 | 68 | 80 | |
| IS-BH2426 | 1-1/2" firkant 1-5/8" Std | Standard | 1-5/8" | 86 | 70 | 80 | |
| IS-BH2427 | 1-1/2" firkant 1-11/16" Std | Standard | 1-11/16" | 86 | 73 | 82 | |
| IS-BH2428 | 1-1/2" firkant 1-3/4" Std | Standard | 1-3/4" | 86 | 75 | 84 | |
| IS-BH2429 | 1-1/2" firkant 1-13/16" Std | Standard | 1-13/16" | 86 | 76 | 84 | |
| IS-BH2430 | 1-1/2" firkant 1-7/8" Std | Standard | 1-7/8" | 86 | 78 | 87 | |
| IS-BH2431 | 1-1/2" firkant 1-15/16" Std | Standard | 1-15/16" | 86 | 80 | 87 | |
| IS-BH2432 | 1-1/2" firkant 2" Std | Standard | 2" | 86 | 82 | 87 | |
| IS-BH2433 | 1-1/2" firkant 2-1/16" Std | Standard | 2-1/16" | 86 | 83 | 87 | |
| IS-BH2434 | 1-1/2" firkant 2-1/8" Std | Standard | 2-1/8" | 86 | 86 | 90 | |
| IS-BH2435 | 1-1/2" firkant 2-3/16" Std | Standard | 2-3/16" | 86 | 88 | 90 | |
| IS-BH2436 | 1-1/2" firkant 2-1/4" Std | Standard | 2-1/4" | 86 | 90 | 95 | |
| IS-BH2437 | 1-1/2" firkant 2-5/16" Std | Standard | 2-5/16" | 86 | 93 | 95 | |
| IS-BH2438 | 1-1/2" firkant 2-3/8" Std | Standard | 2-3/8" | 86 | 94 | 95 | |
| IS-BH2439 | 1-1/2" firkant 2-7/16" Std | Standard | 2-7/16" | 86 | 96 | 100 | |
| IS-BH2440 | 1-1/2" firkant 2-1/2" Std | Standard | 2-1/2" | 86 | 98 | 100 | |
| IS-BH2441 | 1-1/2" firkant 2-9/16" Std | Standard | 2-9/16" | 86 | 100 | 100 | |
| IS-BH2442 | 1-1/2" firkant 2-5/8" Std | Standard | 2-5/8" | 86 | 102 | 105 | |
| IS-BH2443 | 1-1/2" firkant 2-11/16" Std | Standard | 2-11/16" | 86 | 104 | 105 | |
| IS-BH2444 | 1-1/2" firkant 2-3/4" Std | Standard | 2-3/4" | 86 | 106 | 105 | |
| IS-BH2445 | 1-1/2" firkant 2-13/16" Std | Standard | 2-13/16" | 86 | 108 | 108 | |
| IS-BH2446 | 1-1/2" firkant 2-7/8" Std | Standard | 2-7/8" | 86 | 110 | 108 | |
| IS-BH2447 | 1-1/2" firkant 2-15/16" Std | Standard | 2-15/16" | 86 | 112 | 108 | |
| IS-BH2448 | 1-1/2" firkant 3" Std | Standard | 3" | 86 | 113 | 108 | |
| IS-BH2449 | 1-1/2" firkant 3-1/16" Std | Standard | 3-1/16" | 86 | 115 | 115 | |
| IS-BH2450 | 1-1/2" firkant 3-1/8" Std | Standard | 3-1/8" | 86 | 118 | 115 | |
| IS-BH2454 | 1-1/2" firkant 3-3/8" Std | Standard | 3-3/8" | 86 | 126 | 118 | |
| IS-BH2456 | 1-1/2" firkant 3-1/2" Std | Standard | 3-1/2" | 86 | 129 | 123 | |
| IS-BH2460 | 1-1/2" firkant 3-3/4" Std | Standard | 3-3/4" | 95 | 137 | 123 | |
| IS-BH2462 | 1-1/2" firkant 3-7/8" Std | Standard | 3-7/8" | 95 | 144 | 130 | |
| IS-BH2468 | 1-1/2" firkant 4-1/4" Std | Standard | 4-1/4" | 95 | 154 | 135 |
Ingen treff.
Prøv et annet filter – eller send oss en forespørsel, så finner vi det eller lager det på mål.
Gode spørsmål
Sekskant eller tolvkant – hva skal jeg velge?
Sekskantpiper gir godt grep og er standardvalget til slagverktøy. Tolvkantpiper er enklere å tre på bolten når du ikke ser eller har dårlig plass. Er du usikker, ring oss, så hjelper vi deg å velge.
Finner du ikke dimensjonen du trenger? Vi skaffer piper på mål. Les mer om spesialverktøy eller ring +47 51 71 54 00.
Trenger du kraftpiper nå?Ta kontakt – vi sjekker lagerstatus og leveringstid med en gang.
